How to Format the SD card in C.A.B M, C.A.B. M+ and OPUS?

How to Format the SD card in C.A.B M, C.A.B. M+ and OPUS?

The recommended way of formatting the supplied SD card (or any another compatible SD card) to be used in the C.A.B M, C.A.B. M+ or OPUS is to do it through the pedal.

Mounting C.A.B M, C.A.B. M+ or OPUS to Your Host Machine

  1. Press on the left encoder to enter the MENU of the pedal.
  2. Browse to the Global section and enter it (press on the right encoder to enter)
  3. Browse to Memory Card Mount and press ENTER (right encoder) to mount the card. The pedal will appear as a regular mass storage device on your computer

Formatting the Supplied USB Card on a Windows Computer

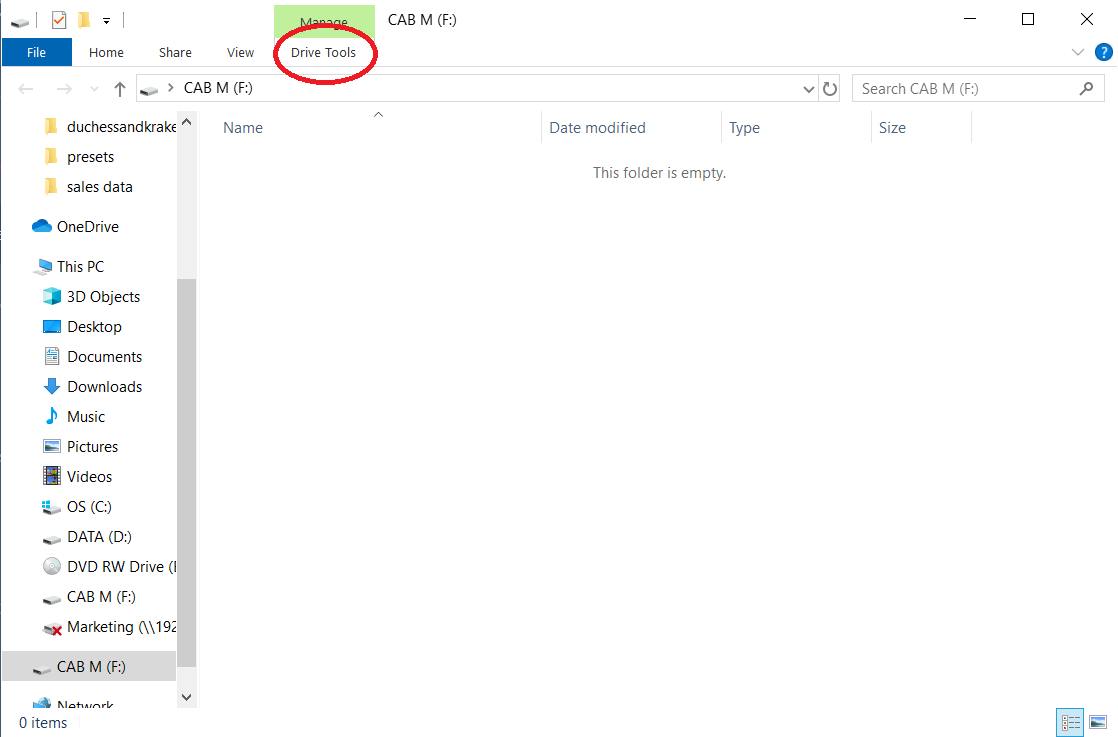

Use the Drive Tools located in the Windows Explorer window of your computer.

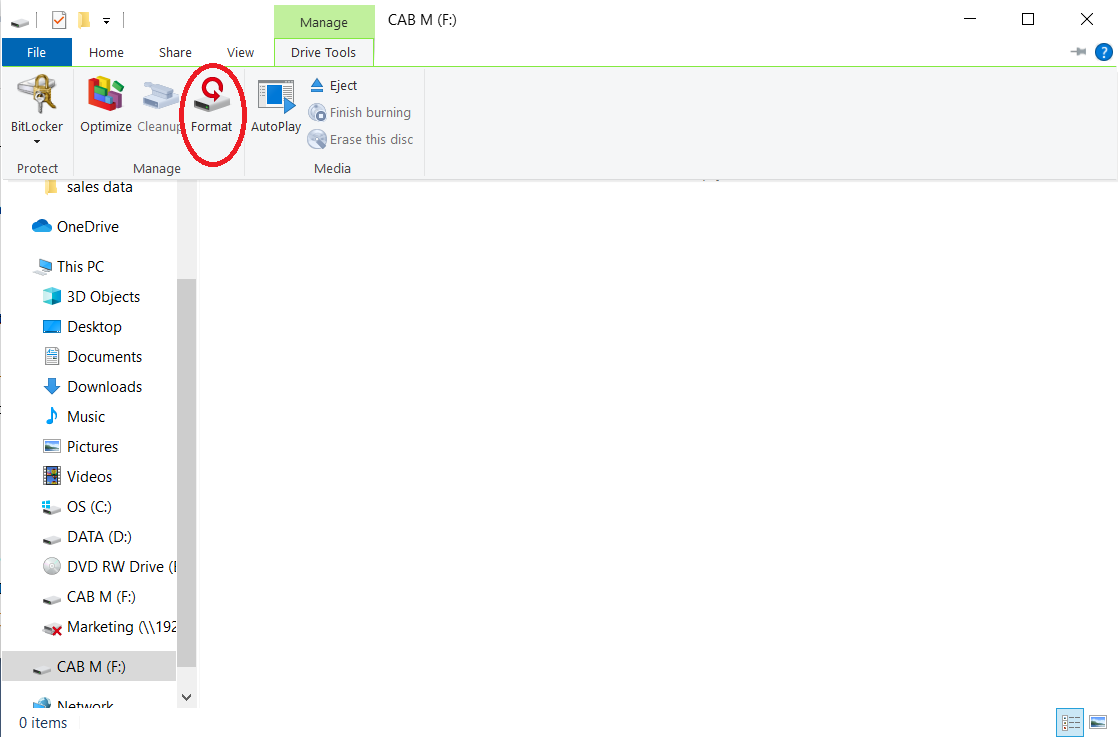

Click on Format to open the formatting options window.

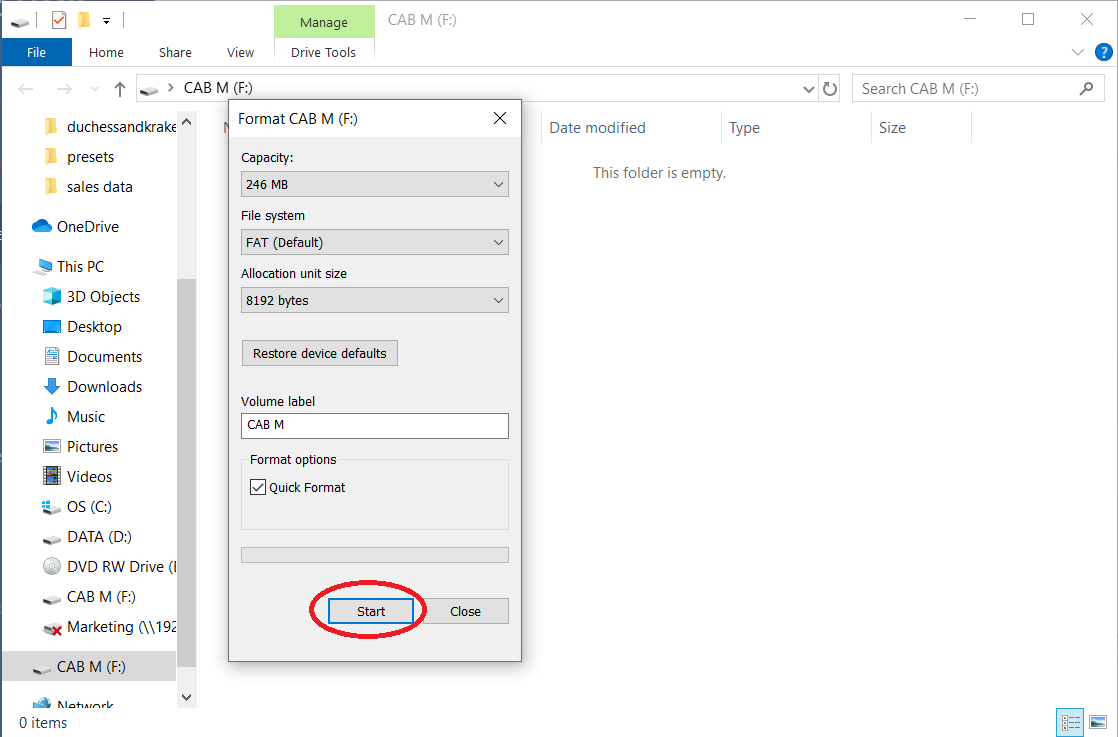

Format the card, selecting FAT.



Formatting the Supplied USB Card on Mac OSX

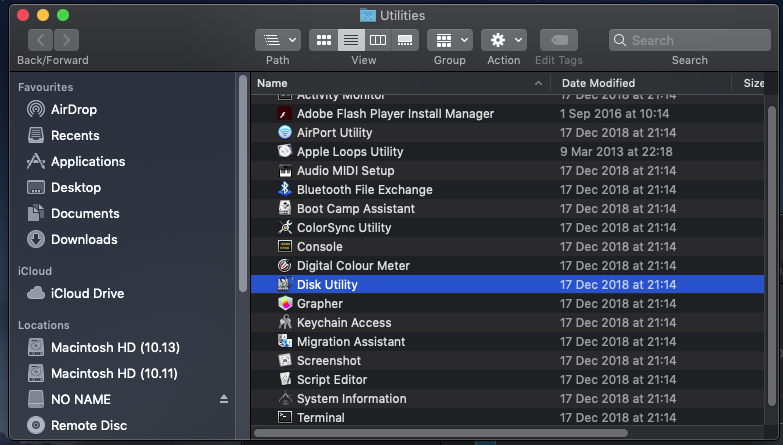

Use the Disk Utility Application



 Select the disk corresponding to the Torpedo C.A.B M, C.A.B. M+ or OPUS memory card

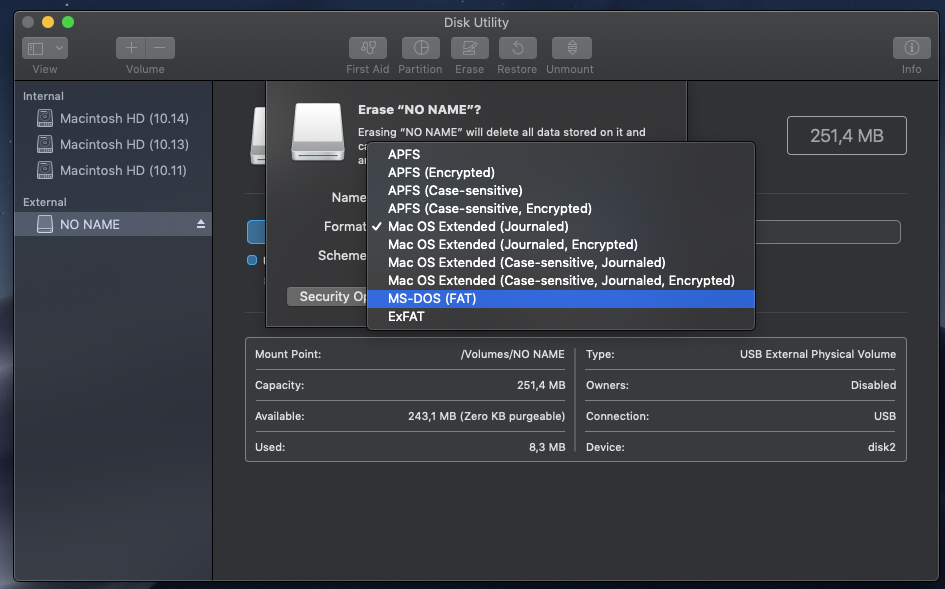

Click on the Erase button located between the Partition and the Restore buttons, selecting tthe MS-DOS (FAT) format

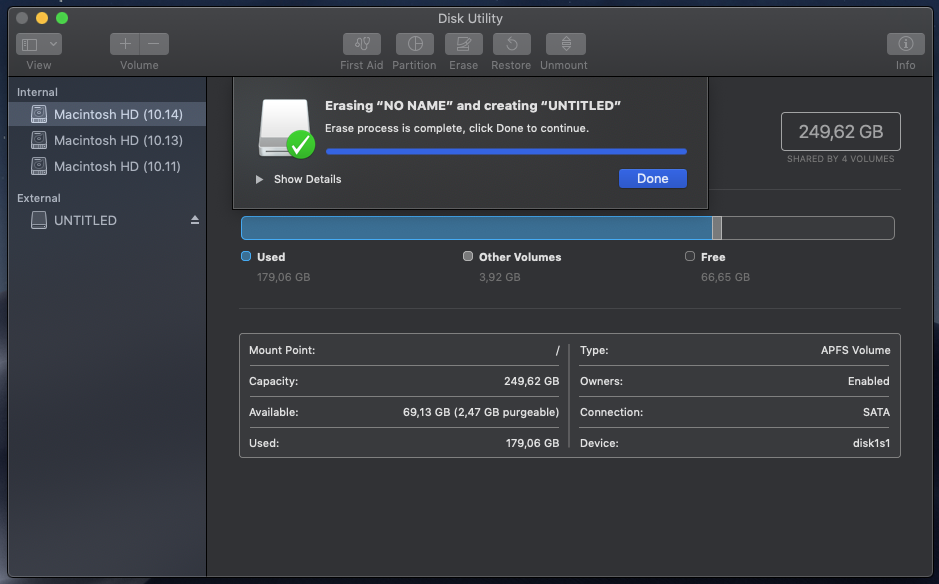

Click the Erase button within the Erase window
